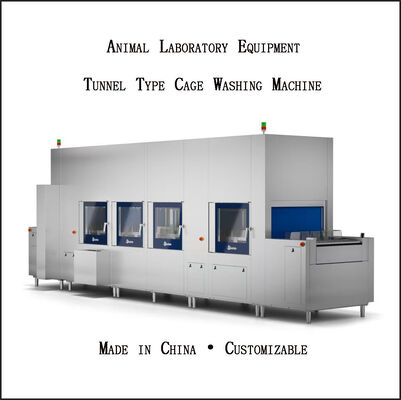

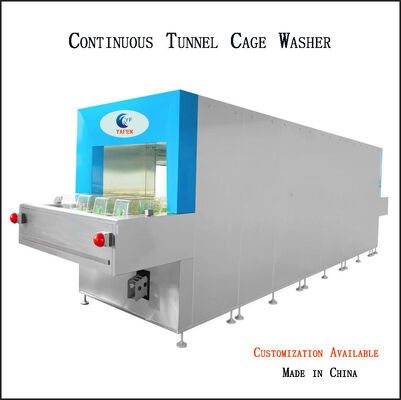

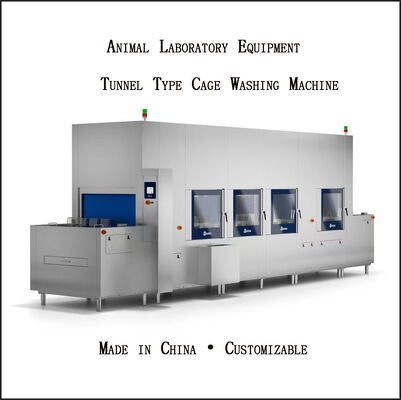

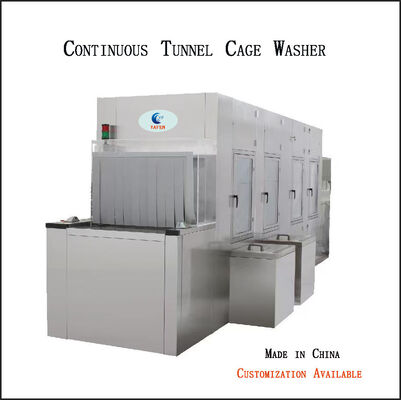

Tunnel Type Automatic Cage Washer 304 Stainless Steel Animal Cage Cleaning Machine

Description
Basic Specifications: Fully Automatic Tunnel-type Continuous Cage Cleaning Machine Body Material: The Whole Machine Is Made Of 304 Stainless Steel
Conveying Method: Food-grade/medical-grade Stainless Steel Mesh Belt Conveying. Frequency Conversion Speed Regulation Compatible Cages: IVC Mouse Cages, Rat Cages, Cage Racks, Water Bottles, Fecal Trays (compatible With All Specifications))
Main Washing Pressure: 1.5-3.0MPa High-pressure Spray Main Washing Water Temperature: 55-65°C(adjustable)
Disinfection Method: High-temperature Hot Water Disinfection(≥90°C) Drying System: HEPA H14Efficient Filtration Hot Air Drying, Temperature60-80°C
Processing Capacity: Up To 1200 Cages Per Hour Power Specifications: 380V/400V 50/60Hz Three-phase Five-wire
Total Power: 55-80KW Water Consumption: 1.2-1.8m³/hour
Overall Dimensions: CustomizationL1200*W1800*H2500mm Weight: 4500-6000kg
Control And Security: Siemens PLC + 10-inch Color Touch Screen
Highlight:

Tunnel Type Automatic Cage Washer

,

Automatic Cage Washer Stainless Steel

,

Animal Cage Cleaning Machine

Core Advantages of Tunnel-type Cage Washer (Special for Animal Laboratories)

Continuous assembly line with extremely high efficiency

Non-stop feeding and discharging, suitable for large-scale animal houses and large-scale breeding centers, with hourly cage processing capacity far higher than cabinet-type models.

Integration of cleaning + disinfection + rinsing + drying

From dirty cages to clean and directly usable ones, the entire process is completed at one time, reducing manual transfer and secondary pollution.

Stable cleanliness and compliance with experimental regulations

High-temperature and high-pressure spraying + high-temperature rinsing, thoroughly removing feces, bedding, and organic residues, meeting the requirements of GLP, CNAS, and AAALAC.

Water-saving, electricity-saving, and steam-saving

Water recycling and segmented temperature control make it more energy-efficient than manual or cabinet-type ones, with lower long-term usage costs.

Significantly reduce labor and labor intensity

High degree of automation, only requiring loading and unloading, liberating laboratory personnel and reducing contact with dirt.

Compatible with various utensils

Able to clean mouse/rat IVC cages, cage lids, water bottles, food troughs, trays, slippers, etc.

Traceable operation data

Temperature, time, and programs can be recorded and exported, facilitating audit and verification.
