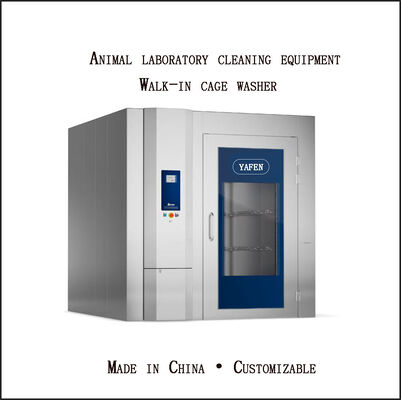

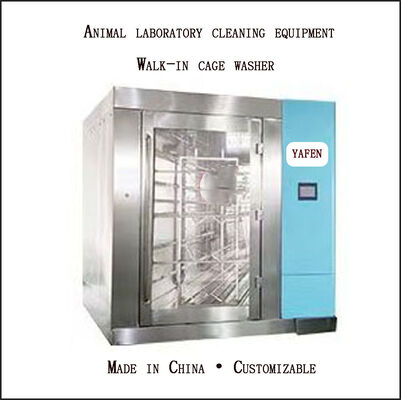

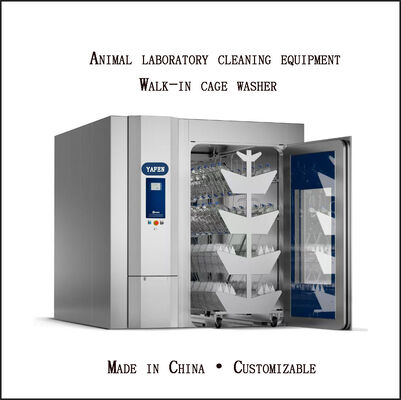

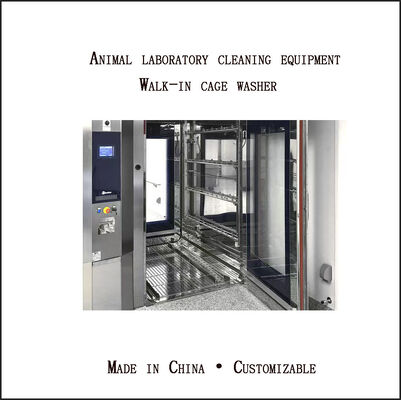

Name: 120 - 240 IVC Cages Lab Animal Equipment 30KW Single Door Walk In Cage Washer
Brand: Dongguan Yafen Intelligent Technology Co., Ltd.
SKU: YFPRS-1003
Availability: InStock

Place of Origin:

Dongguan City, China

Brand Name:

Yafen Cleaning Equipment Walk-in Cage Washer

Certification:

ISO900/CE

Model Number:

YFPRS-1003

Minimum Order Quantity:

1 unit

Price:

Negotiable in person

Packaging Details:

Export wooden box

Delivery Time:

30 working days

Payment Terms:

T/T

Supply Ability:

2 units per month

Material:

304 Stainless Steel (316L Optional)

Structure:

Walk-in Single-door Design With Tempered Glass

Volume:

Customizable, Typically Compatible With 120-240 IVC Mouse Cages / 30-60 Sets Of Cage Racks

Overall Dimensions:

L2200*W2000*H2300mm

Weight:

1500KG

Cleaning Method:

360°C-degree High-pressure Rotating Spray Arm, No Cleaning Dead Corners

Water Temperature Range:

20-85°C

Disinfection Method:

High-temperature Hot Water Disinfection (≥90°C, Duration ≥5min)

Drying System:

HEPA High-efficiency Filtration Hot Air Drying, With A Drying Temperature Of 40-70°C

Water Consumption:

≤300ml/cage (based On A Batch Of 120 Cages)

Control System:

PLC + Color Touch Screen, Which Can Store More Than 10 Custom Cleaning Programs

Running Parameters:

25-35min (cleaning + Disinfection + Drying)

Power:

30KW

Power Supply:

380V 50Hz Three-phase Four-wire

Highlight:

IVC Cages Lab Animal Equipment

Lab Animal Equipment 30KW

Single Door Walk In Cage Washer

The walk-in cage washer is the core equipment for large-scale and standardized cleaning in animal laboratories. Compared with cabinet-type/tunnel-type ones, it has prominent advantages in large capacity, high efficiency, high cleanliness, easy operation, and compliance.

Ultra-large capacity and high throughput (core advantages)

Large single processing capacity: Each cycle can clean 100–168 IVC mouse cages, and is compatible with large utensils such as cage racks, carts, water bottles, and food troughs.

Fast cycle speed: The standard cycle is ≤7 minutes, with 8–10 cycles completed per hour, and the hourly processing capacity exceeds 1,600 cages.

Suitable for large-scale breeding: Suitable for large animal centers, pharmaceutical companies, and CROs, significantly shortening the turnover time of cages.
Strong cleaning effect and high cleanliness (compliance guarantee)

360° dead-angle-free spraying: Vertical + horizontal swing arms, full coverage of high-pressure water flow, suitable for complex structures.

High temperature + high pressure + special cleaning agent: Effectively remove feces, bedding, and organic residues, with residues ≤1ppm.

Compliant with GLP/AK-KAB standards: Can provide FAT/SAT/IQ/OQ/PQ verification, meeting CNAS and FDA audit requirements.

Corrosion-resistant material: The cavity is made of 316L stainless steel with mirror polishing (Ra<0.8μm), and the rounded corner design prevents dirt accumulation and is easy to clean.
