Flat Commercial Dishwashing Equipment Tableware Dinner Plates Cleaning Machine

Flat Commercial Dishwashing Equipment Tableware Dinner Plates Cleaning Machine
Flat Commercial Dishwashing Equipment Tableware Dinner Plates Cleaning Machine
Flat Commercial Dishwashing Equipment Tableware Dinner Plates Cleaning Machine Flat Commercial Dishwashing Equipment Tableware Dinner Plates Cleaning Machine Flat Commercial Dishwashing Equipment Tableware Dinner Plates Cleaning Machine Flat Commercial Dishwashing Equipment Tableware Dinner Plates Cleaning Machine Flat Commercial Dishwashing Equipment Tableware Dinner Plates Cleaning Machine Flat Commercial Dishwashing Equipment Tableware Dinner Plates Cleaning Machine

Large Image :  Flat Commercial Dishwashing Equipment Tableware Dinner Plates Cleaning Machine

Product Details:
Place of Origin: Dongguan City, China
Brand Name: Yafen Flat Commercial Dishwasher
Certification: ISO9001/CE
Model Number: YF250
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: The size can be discussed face-to-face according to the customer's needs.
Packaging Details: Export wooden cases
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 10 units per month
Contact Now Chat Now

Flat Commercial Dishwashing Equipment Tableware Dinner Plates Cleaning Machine

Description
Machine Model: YF-250 Flat Dishwasher Dimensions: L2500*W800*H1600mm
Machine Inlet Width: 620mm Maximum Wash Height: 300mm
Maximum Water Consumption: 0.4 Tons/hour Performance Brief: One Main Wash, One Spray, And One Drying
Maximum Washing Volume: 1500 Pieces/hour Total Power: 50KW/380V
Spray Temperature: 60-65°C Heating Power Of The Drying Section: 12kW
Washing Temperature: 60-65°C Leakage Switch Current Rating: 100A
Highlight:

Flat Dishwashing Equipment

,

Commercial Dishwashing Equipment

,

Dinner Plates Cleaning Machine

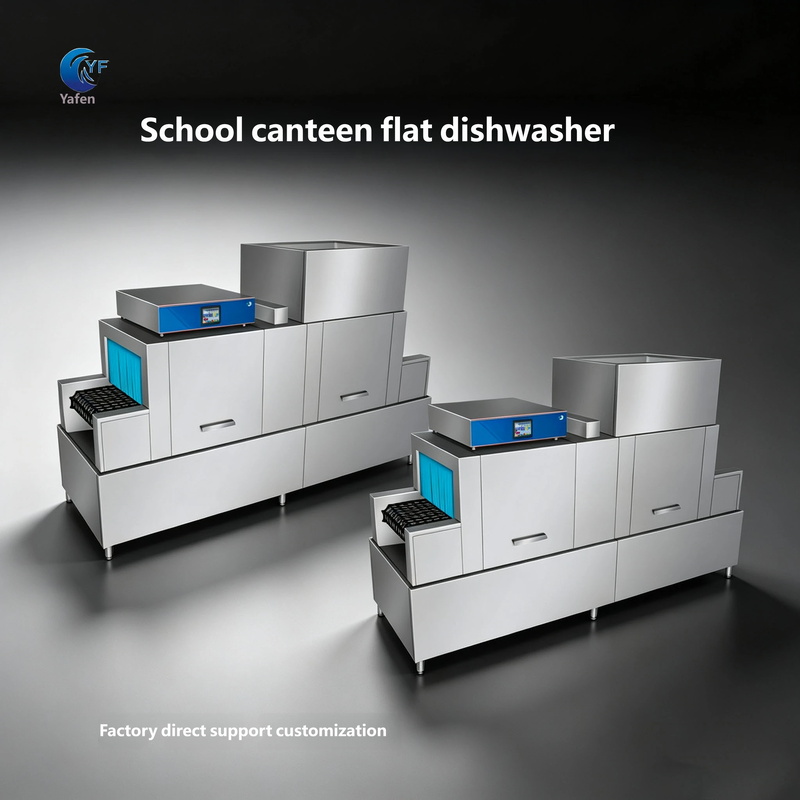

Flat commercial dishwashers are suitable for cleaning various dinner plates and tableware in school canteens, university canteens, and enterprise canteens.

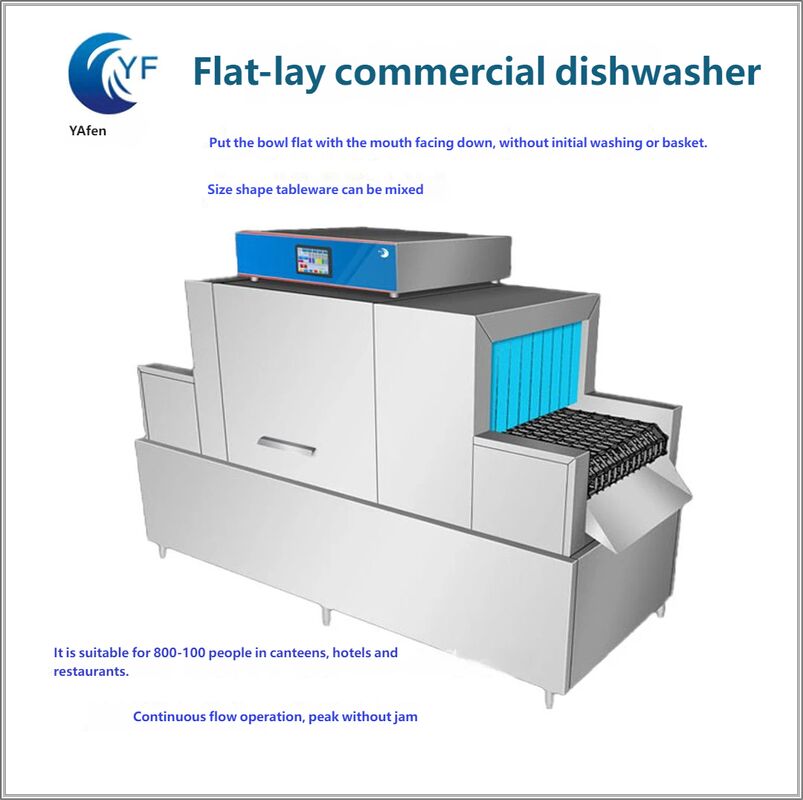

Flat-lay commercial dishwasher (4th generation commercial dishwasher) features include no need for basket loading, flat-laying with inversion, conveying, high-pressure water curtain, multi-stage water circulation, high water efficiency, compatibility with Chinese food irregular tableware, large processing capacity, and simple operation.

I. Core Structure and Cleaning Method

Flat-laying with inversion + direct track transmission: Tableware is directly laid flat on the conveyor belt with the bowl mouth facing down, no need for basket loading or pre-washing; irregular plates, bowls, cups, and spoons can be cleaned in one go.

SUS304 stainless steel body: corrosion-resistant, no secondary pollution, sturdy and durable.

Large-aperture mesh belt + soft pressure belt: The mesh belt is not easy to stick to residues and is easy to disassemble and repair; the soft pressure belt prevents tableware from jumping, can withstand higher water pressure, and ensures more thorough cleaning.

II. Spraying and Cleaning System

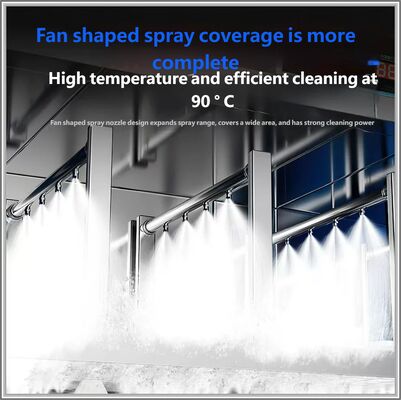

Sprinkler-free water curtain spraying: The spray pipe has no sprinklers, forming a high-pressure water curtain with 360° no dead angles, which is more uniform and has stronger impact than traditional spraying.

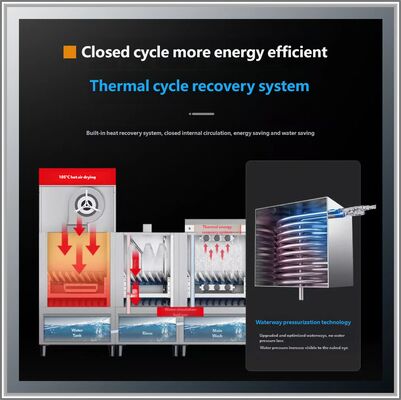

Multi-stage water tanks + reverse water circulation: Three-stage water tanks for rough washing → cleaning → fine washing, with reverse water circulation and reuse, saving more than 50% of water.

High-temperature rinsing + disinfection: 80–90℃ high-temperature rinsing, which simultaneously achieves sterilization and meets food service hygiene standards.

III. Efficiency and Adaptability

Large processing capacity: It can wash 2700–4000 + dishes per hour, suitable for centralized catering scenarios with more than 300 people.
