Tunnel-Type Laboratory Animal Cage Washer, Fully Automatic Cage Washing, Disinfecting and Drying Assembly Line

Tunnel-Type Laboratory Animal Cage Washer, Fully Automatic Cage Washing, Disinfecting and Drying Assembly Line
Tunnel-Type Laboratory Animal Cage Washer, Fully Automatic Cage Washing, Disinfecting and Drying Assembly Line
Tunnel-Type Laboratory Animal Cage Washer, Fully Automatic Cage Washing, Disinfecting and Drying Assembly Line Tunnel-Type Laboratory Animal Cage Washer, Fully Automatic Cage Washing, Disinfecting and Drying Assembly Line Tunnel-Type Laboratory Animal Cage Washer, Fully Automatic Cage Washing, Disinfecting and Drying Assembly Line Tunnel-Type Laboratory Animal Cage Washer, Fully Automatic Cage Washing, Disinfecting and Drying Assembly Line Tunnel-Type Laboratory Animal Cage Washer, Fully Automatic Cage Washing, Disinfecting and Drying Assembly Line

Large Image :  Tunnel-Type Laboratory Animal Cage Washer, Fully Automatic Cage Washing, Disinfecting and Drying Assembly Line

Product Details:
Place of Origin: Dongguan City, China
Brand Name: Yafen Tunnel-type Cage Washer
Certification: ISO900/CE
Model Number: YFSDS6003
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable in person
Packaging Details: Export wooden cases
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 10 units per month
Contact Now Chat Now

Tunnel-Type Laboratory Animal Cage Washer, Fully Automatic Cage Washing, Disinfecting and Drying Assembly Line

Description
Basic Specifications: Fully Automatic Tunnel-type Continuous Cage Cleaning Machine Body Material: The Whole Machine Is Made Of 304 Stainless Steel
Conveying Method: Food-grade/medical-grade Stainless Steel Mesh Belt Conveying. Frequency Conversion Speed Regulation Compatible Cages: IVC Mouse Cages, Rat Cages, Cage Racks, Water Bottles, Fecal Trays (compatible With All Specifications)）
Main Washing Pressure: 1.5-3.0MPa High-pressure Spray Main Washing Water Temperature: 55-65°C（adjustable）
Disinfection Method: High-temperature Hot Water Disinfection（≥90°C） Drying System: HEPA H14Efficient Filtration Hot Air Drying, Temperature60-80°C
Processing Capacity: Up To 1200 Cages Per Hour Power Specifications: 380V/400V 50/60Hz Three-phase Five-wire
Total Power: 55-80KW Water Consumption: 1.2-1.8m³/hour
Overall Dimensions: CustomizationL1200*W1800*H2500mm Weight: 4500-6000kg
Control And Security: Siemens PLC + 10-inch Color Touch Screen
Highlight:

Fully automatic Cage Washer Machine

,

stainless steel Laboratory Cage Cleaning Equipment

,

Laboratory Animal Cage Washer

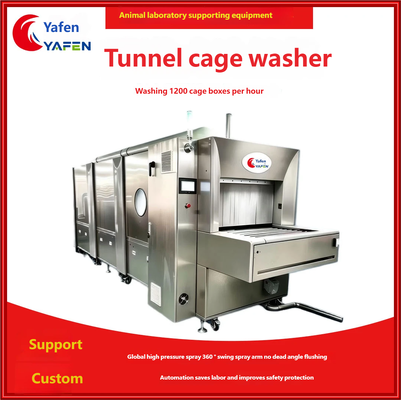

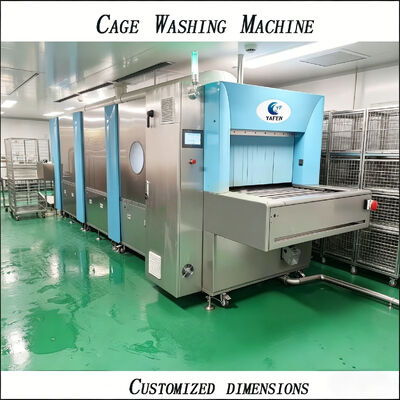

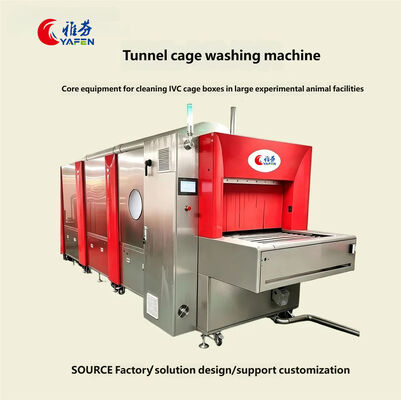

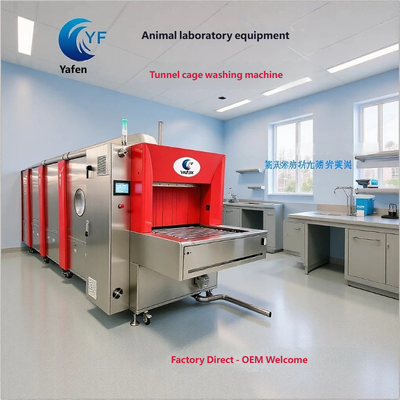

Automatic tunnel cage washer, continuous assembly line integrated machine for washing, disinfection and drying. Made of 304 stainless steel with full-surround high-pressure spraying and high-temperature pasteurization. Circulating water energy-saving design, modular customizable. Suitable for mass cleaning of laboratory animal cages and poultry crates, OEM available.



Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

2
2*
China (Mainland) Jun 1.2026
Helpful (2)
After two months of operation, the machine maintains stable performance under all-day continuous running with sufficient spraying pressure and consistent cleaning results, capable of meeting the daily demand for mass cage cleaning.
Review Image
1
1
China (Mainland) May 20.2026
Helpful (1)
The cabin features a spacious interior that allows entire cages to be pushed straight in, delivering maximum cleaning efficiency with its large capacity
Review Image
1
1
China (Mainland) May 11.2026
Helpful (1)
Double-layer tempered glass viewing window enables full visibility of the cleaning process; built-in lighting allows clear observation of internal cleaning conditions even during night shift cleaning work.
Review Image
