Laboratory Animal Cage Washer Equipment Continuous Tunnel Type 316L Stainless Steel

Laboratory Animal Cage Washer Equipment Continuous Tunnel Type 316L Stainless Steel
Laboratory Animal Cage Washer Equipment Continuous Tunnel Type 316L Stainless Steel
Laboratory Animal Cage Washer Equipment Continuous Tunnel Type 316L Stainless Steel Laboratory Animal Cage Washer Equipment Continuous Tunnel Type 316L Stainless Steel Laboratory Animal Cage Washer Equipment Continuous Tunnel Type 316L Stainless Steel Laboratory Animal Cage Washer Equipment Continuous Tunnel Type 316L Stainless Steel Laboratory Animal Cage Washer Equipment Continuous Tunnel Type 316L Stainless Steel

Large Image :  Laboratory Animal Cage Washer Equipment Continuous Tunnel Type 316L Stainless Steel

Product Details:
Place of Origin: Dongguan City, Guangdong Province, China
Brand Name: Yafen Animal Laboratory Cleaning Equipment - Tunnel Cage Washer
Certification: ISO9001/CE
Model Number: YF-CLSDS6001
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable in person
Packaging Details: Export wooden cases
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 5 units per month
Contact Now Chat Now

Laboratory Animal Cage Washer Equipment Continuous Tunnel Type 316L Stainless Steel

Description
Device Model: YF-SDS6001 Overall Dimensions: L6800*W1200*H2000mm
Interior Cabin Dimensions: L5400*W960*H490mm Cleaning Speed: 1200 Standard Cages Per Hour
Heating Method: Steam Heating Or Electric Heating Power Of The Main Washing Water Pump: 3KW
Rinsing Water Pump Power: 2.2KW Total Power: 84KW
Supply Voltage: Three-phase Five-wire 380V Number Of Rinsing Nozzles: 12
Number Of Main Washing Nozzles: 84 Water Consumption Per Hour: 0.6 Tons/hour
Empty Weight Of The Equipment: 2.5 Tons Total Weight In Operating State: 3.2 Tons
Highlight:

Animal Cage Washer Equipment

,

Animal Cage Washer Tunnel Type

Core Features of the Long Dragon Tunnel Cage Washer for Animal Laboratories
The Long Dragon Tunnel Cage Washer is a core cleaning equipment for large-scale animal laboratories (such as animal centers in large pharmaceutical companies, research institutions and universities, and SPF-grade animal rooms). Different from cabinet-type cage washers, it features continuous operation, ultra-large processing capacity, and full-process automation as its core advantages. It is suitable for batch cleaning and disinfection of various experimental animal cages, including IVC cages, metabolic cages, and breeding cages, and strictly meets biosafety and compliance requirements such as GLP, GMP, and AAALAC. Its core features are as follows:
  1. Structural Design: Continuous tunnel layout with upgraded biosafety isolation

    Tunnel-type continuous operation structure

    Adopting a multi-section tunnel layout (pre-washing section → main washing section → rinsing section → disinfection section → drying section), the cages are continuously transferred through the conveying system, realizing an uninterrupted full-process operation of "loading - cleaning - disinfection - drying - unloading", completely eliminating the batch limitations of cabinet-type machines.

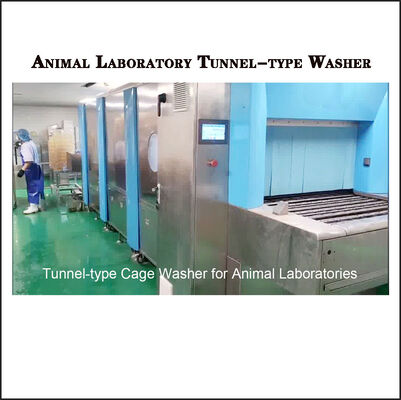

Tunnel Cage Washer for Animal Laboratory Equipment with 1200 Cages per Hour Capacity and 316L Stainless Steel Continuous Tunnel Operation

Double-door / zoned isolation design

The front and rear ends of the equipment are equipped with a feed inlet in the contaminated area and a discharge outlet in the clean area, combined with electronic and mechanical double interlocking. It physically isolates the contaminated end and the clean end throughout the process, preventing cross-contamination before and after cage cleaning, and meeting the biosafety standards of BSL-2/3 level animal laboratories.
Modularization and conveying system

The whole machine is assembled in modules, and the number of cleaning sections / drying sections can be increased or decreased according to the site and processing capacity; the conveying system uses a stainless steel mesh belt / silent chain with frequency conversion speed regulation (0.5-5m/min), which is suitable for different cage sizes and cleaning rhythms, ensuring stable and non-jamming conveying.
Fully sealed anti-corrosion structure

The shell, inner tank, and pipelines of the whole machine are made of 316L stainless steel (high-end model) / 304 stainless steel, with mirror polishing and seamless welding. They are resistant to corrosion by acid and alkali cleaning agents and disinfectants, have no hygiene dead corners, and are easy to clean and disinfect.
