| Device Model: | YF-CDC1000 | Overall Dimensions: | L1500*W1400*H1600mm |
|---|---|---|---|
| Inner Cabin Dimensions: | L1200*W1200*H1200mm | Disinfection Method: | Sterilization By Ultraviolet Irradiation |
| Door Sealing Method: | Sealed Inn: Sealed, Double Doors Interlocked | Total Power: | 5.0KW |
| Supply Voltage: | Three-phase Five-wire 380V | Empty Weight Of The Equipment: | 1.2 Tons |
| Total Weight In Operating State: | 1.4 Tons | ||
| Highlight: | Lab Transfer Window,Laboratory Sterile Transfer Window,Animal Transfer Window |
||

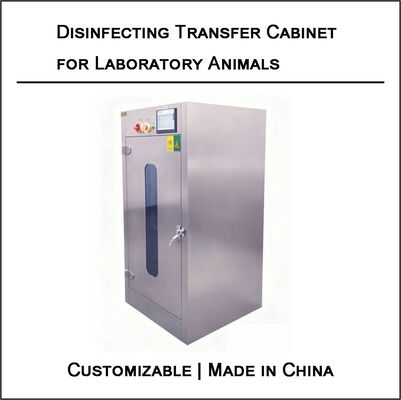

The Sterile Transfer Window For Laboratory Animals Can Complete One Sterilization Transfer Within 1-2 Hours And Has An Intelligent Reservation Start Function.
Double-door interlock + airtight sealing, physically isolating cross-area contamination
Adopting an electronic and mechanical dual double-door interlock design, the doors on both sides cannot be opened at the same time, completely eliminating air convection between clean areas and non-clean areas; the door body is equipped with medical-grade silicone sealing strips, which fit the cabinet seamlessly, and the sealing performance meets laboratory cleanliness standards. This prevents dust and microorganisms from non-clean areas from infiltrating into clean areas, and at the same time avoids the leakage of clean air from clean areas, ensuring the stability of cleanliness in each area, which is the core isolation foundation of the pass-through box.
